PM866AK01ABB AbilityTM System 800xA硬件选择器ABAC叔叔CPU板包含微处理器、RAM、实时时钟、LED指示灯、INIT按钮和CompactFlash接口。PM866/PM866A控制器底板上有2个RJ45以太网接口(CN1、CN2)用于连接控制网络，2个RJ45串口(COM3、COM4)。其中一个串口(COM3)为RS-232C，带有调制解调器控制信号，另一个串口(COM4)为隔离端口，用于连接配置工具。控制器支持CPU冗余以获得更高的可用性(CPU, CEX-Bus，通信接口和S8001/0)。简单的DIN导轨连接/分离程序，使用独特的滑动和锁定机构。所有底板都有一个唯一的以太网地址，为每个CPU提供一个硬件标识。该地址可以在TP830底板上的以太网地址标签上找到。

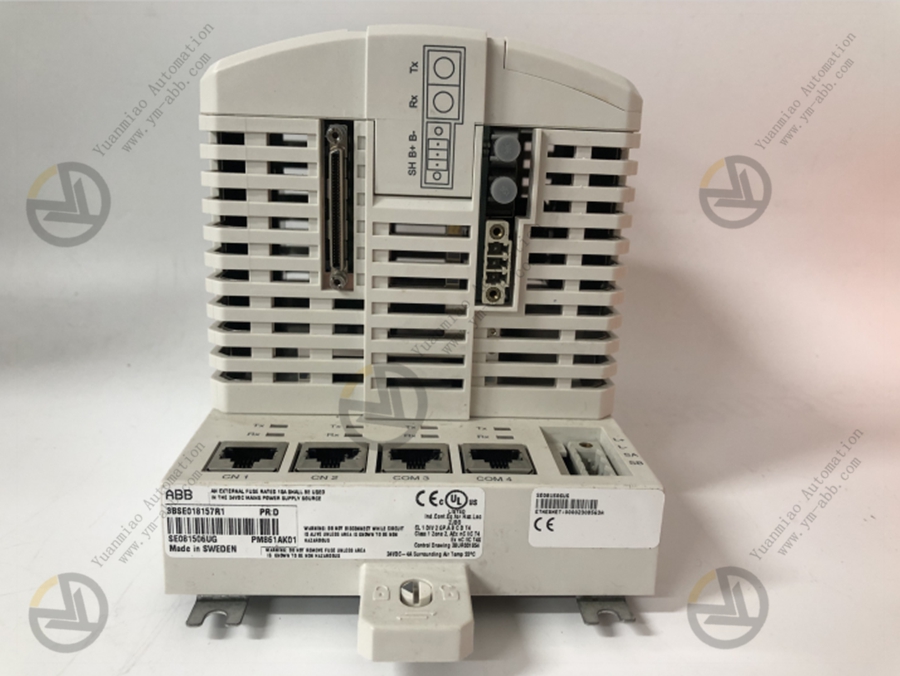

The CPU board contains the microprocessor and RAM memory, a realtime clock, LED indicators, INITpush button, and a CompactFlash interface. The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) forconnection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C portwith modemcontrol signals,whereas the other port(COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancyfor higher availability(CPU, CEX-Bus,communication interfaces and S800 I/O). Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are providedwith a unique Ethernet address which provides every CPUwith a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

Features and benefits ISA Secure certified - Read more Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection withoutthe requirementfor enclosures The controllercan be configuredwith 800xA control builder The controller has full EMC certification Sectioned CEX-Bus using a pair of BC810 / BC820 Hardware based on standards for optimumcommunication connectivity(Ethernet, PROFIBUS DP, etc.) Built-in redundant Ethernet Communication ports
特点和好处ISA安全认证-阅读更多可靠性和简单的故障诊断程序模块化，允许逐步扩展IP20级防护，无需外壳控制器可配置800xA控制生成器控制器通过完整的EMC认证Sectioned CEX-Bus，使用一对BC810/BC820基于最佳通信连接标准的硬件(以太网，PROFIBUS DP等)内置冗余以太网通信端口
